SB Spherical Plain Bearings

SB Spherical Plain Bearings

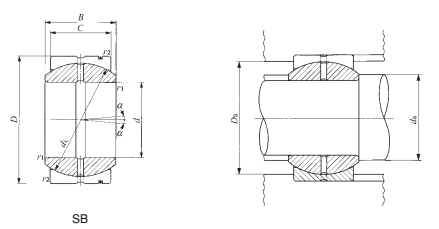

Drawing

Datasheet

Bearing No.		Dimensions				Mass
Bearing No.		d	D	B	C
–	-	mm	mm	mm	mm	kg
SB 12A	SB 122211	12	22	11	9	0.019
SB 15A	SB 152613	15	26	13	11	0.028
SB 20A	SB 203216	20	32	16	14	0.053
SB 22A	SB 223719	22	37	19	16	0.085
SB 25A	SB 254221	25	42	21	18	0.116
SB 30A	SB 305027	30	50	27	23	0.225
SB 35A	SB 355530	35	55	30	26	0.3
SB 40A	SB 406233	40	62	33	28	0.375
SB 45A	SB 457236	45	72	36	31	0.6
SB 50A	SB 508042	50	80	42	36	0.87
SB 55A	SB 559047	55	90	47	40	1.26
SB 60A	SB 6010053	60	100	53	45	1.7
SB 65A	SB 6510555	65	105	55	47	2.05
SB 70A	SB 7011058	70	110	58	50	2.22
SB 75A	SB 7512064	75	120	64	55	3.02
SB 80A	SB 8013070	80	130	70	60	3.98
SB 85A	SB 8513574	85	135	74	63	4.29
SB 90A	SB 9014076	90	140	76	65	4.71
SB 95A	SB 9515082	95	150	82	70	6.05
SB 100A	SB 10016088	100	160	88	75	7.42
SB 110A	SB 11017093	110	170	93	80	8.55
SB 115A	SB 11518098	115	180	98	85	10.3
SB 120A	SB 120190105	120	190	105	90	12.4
SB 130A	SB 130200110	130	200	110	95	13.8
SB 150A	SB 150220120	150	220	120	105	17
